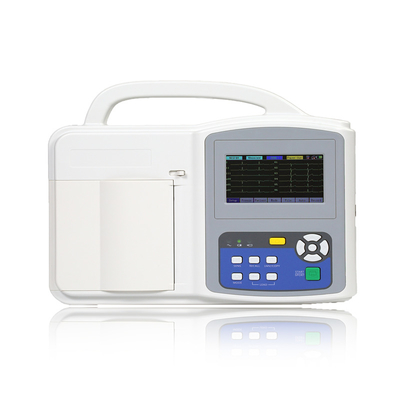

Plastic ECG Machine 6 Channel 12 Lead ECG / EKG Ectrocardiograph Machine High Quality Portable Cheap Price With CE & ISO

1.0 Pieces
MOQ
Plastic ECG Machine 6 Channel 12 Lead ECG / EKG Ectrocardiograph Machine High Quality Portable Cheap Price With CE & ISO
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: UN8006
Power Source: Electric
Warranty: 1 Year
After-sale Service: Return and Replacement
Power Supply Mode: Built-in Battery
Material: Plastic
Shelf Life: 3 years
Quality Certification: ce
Instrument classification: Class II
Safety standard: GB2626-2006
Type: Blood Pressure Monitor
Product name: ECG Machine
Color: white
Weight: 4.0kg
Name: Digital 6-channel ECG machine portable medical ecg
Lead: standard 12 leads
Work modes: MANUAL,AUTO modes
AC Flter: 50Hz / 60Hz
Outbox Dimension: 360 mm * 340mm * 250mm
Informazioni di base
Certificazione: ce
Model Number: UN8006
Termini di pagamento e spedizione
Descrizione di prodotto
Product Description
Specification
UN-8006A/B is a portable and high quality 6-channel ECG, which offer not only normal thermal printing but also external printing solution. It can used in hosipital. Clinic and emergencyies. UN-8006A: 4.3 inch color TFT LCD
Description:
6 channel ECG machine with automatic interpretation Manual/Auto working Modes Simultaneous 12 leads acquisition and 6-ch recording with high resolution thermal printer. 4.3 inch Color TFT LCD display ECG wave and friendly menu setting. Support touch panel and keypad input ways Support SD card storage. 120 seconds ECG wave freeze and replay function. Lead-off detection and alert Digital filtering, resisting baseline drift, AC and EMG interference Built in USB/RS232 interface(ECGNET software optional) Built in rechargeable Li-ion battery support less than 3 hours continuously work. AC power supply at 90-240V@50/60Hz Technical Specification Lead: standard 12 leads Lead acquisition: 16 bit /24bit 1000Hz（synchronously 12 leads） Work modes: MANUAL、AUTO modes Filter: AC Flter : 50Hz / 60Hz EMG Filter : 35Hz / 45Hz Anti-Drift Filter : 0.15Hz (Adaptive) CMMR: ≥100dB (with AC filter) Input circuit: floating; protection circuit against defibrillator effect Input Impedance: ≥50MΩ Input circuit current: ≤0.05μA Input dynamic range: ±5mVpp Patient current leakage: ＜10μA Calibrating voltage: 1mV±2％ Voltage tolerance:±600mV Time constant: ≥3.2s Frequency response: 0.05～150Hz(-3db) Noise level: ＜15μVp-p Sensitivity valve: ≤20μV Sensitivity: 2.5, 5,10,20mm/mV Inter-channel Interference: ≤0.5mm Printer：110mm thermal printer ，adjusted print speed: 5, 10,12.5, 25, 50mm/s（±3％） 100 patient information storage. Display: UN-8006A: 4.3 inch TFT LCD with touch panel.
Company
We,Wuhan Union Medical Technology CO.,Ltd,is a R&D company in patient monitoring solutions,which started in 2009 with leading engineers in China,and established in 2013.Union Medical is committed to the techniques and products of monitoring, diagnosing, supporting and treating the biological information; serving the society; improving human health. Union Medical focused on the development of patient monitoring solutions with engineers who have experience in this area for more than 15 years.Our main solutions are about the non-invasive and invasive solutions for patients vital sign parameters,technologies as: algorithm for ECG diagnosis,pulse oxygen monitoring,respiration gas monitor, respiratory monitoring,electronic sphygmomanometer etc.Vital sign parameter modules:ECG module,SPO2 Module,NIBP Module,IBP Module,Six-parameter Module,Multigas Module etc. We also produce our own final monitoring equipments,like ECG machines,patient monitors,vital sign monitors,pulse oximeters,ETCO2 monitors/Capnometer/Capnograph,Anesthesia Multigas monitors etc. All our solutions/products are for improving the industry of human health.
